Web API 6 - Adding Versioning to the ASP .NET Core Web API

Hello All,

API Versioning is either something you love or you hate. But really It’s great for giving developers the ability to improve and iterate on API’s without breaking contracts.

We have created the API in the article Web API Part 1 - ASP .NET Core Web API Using EntityFrameworkCore and MSSQL Server as Database

Also added CORS to the API in Web API Part 2 - Adding CORS to ASP .NET Core Web API

So We will continue from second part and start working on Versioning.

What is happening?

When we create the service, it will be accessible from many clients. Business grows day by day, as well requirements are getting changed, in that case to achieve the business requirement there will be a change in Service also.

But our main intension is when we update the existing service, it should not break any existing client applications. We should design service like that, it should carry enhancement and existing features.

So, the answer is API Versioning....

This way we keep old service as it is, so none of the client get issue. For  enhancement we create the new version of API that new client applications can start using.

As per my experience, versioning API is very important and it should be implemented in any API projects.

Types Of Versioning:

There are three types of versioning we have.

1. Query String Based

2. URL Based

3. Http Header Based Approach

1. Query String Based

This is the approach where we can specify the API version in the Query String.

For Example:

https://server.com/api/values?api-version=1.0

2. URL Based

Frankly speaking, I do not like query string based pattern.  Its not looks good to send the API version as a query string as API contains other query strings like id of the data object.

URL based versioning is the best and clean approach.

We should decorate our controller or action method with Route attribute and it has version parameter. We will discuss this in detail.

[Route("api/{v:apiVersion}/values"]

For Example:

/api/v1/values

3. Http Header Based

Some clients or user does not want to change the URL of the API, Then we can send the version of the API in the form of Http Header.

To enable Http Header pattern we need to add the version reader under configureService method inside startup.cs but .Net 6 we will add in Program.cs

o.ApiVersionReader = new HeaderApiVersionReader("x-api-version");

After this query string pattern will not work, if you need both then we need to add the below code

o.ApiVersionReader = new QueryStringOrHeaderApiVersionReader("x-api-version");

Once all the steps implemented then we can specify the API version in header part while calling the API

For Example:

GET : http://localhost:54373/api/values

Header(1)

api-version    1.0

--------------------------------------------------------------------------------------------------------------------------------------------------

That's it, these are the three types of version.

Now we will learn, Step by Step Query Based Versioning Pattern.

Lets begin.

First, We will download the source code from Web API Part 2 - Adding CORS to ASP .NET Core Web API

1. Open the above mentioned project in Visual Studio

2. Lets add the dependency via nuget package

• Microsoft.AspNetCore.Mvc.Versioning

3. Go to Program.cs and add the below code

builder.Services.AddApiVersioning(option =>
{
    option.DefaultApiVersion = new ApiVersion(1, 0);
    option.AssumeDefaultVersionWhenUnspecified = true;
    option.ReportApiVersions = true;
});

Screen shown below

ReportApiVersions :

It is a flag used to add the API versions in the response header as shown below.

api-supported-version : 1.0

content-type : application/json
server : kestrel

AssumeDefaultVersionWhenUnspecified :

It is used to set the default version when client has not specified any version. If we do not specify this then error will occur if no version specified.

DefaultApiVersion :

It is used to set the default version count.

4. Next go to your controller and set a route substitution stating that the API version must be in the URI with the v{version:apiVersion} format.

and also and mark it as version 1.0 like below

[Route("api/v{version:apiVersion}/Learning")]
[ApiVersion("1.0")]

Screen shown below

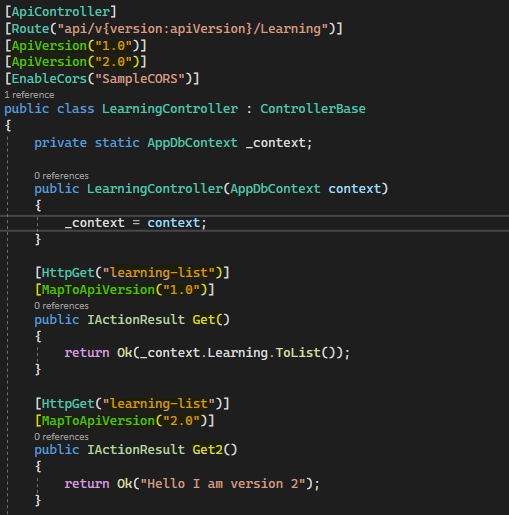

5. Lets create one more action Get2 with same route learning-list and mark version 2 with the help of MapToApiVersion attribute

MapToApiVersion:

If you want to apply versioning only for specific action method instead whole controller, then we can use MapToApiVersion attribute.

do not forget to define the list of version at controller level

Now we have two version of learning-list method one for v1 and another for v2

Do not forget, when you test in Swagger:

Swagger will through the error when you have two methods with same route, because swagger will think its conflict.

We need to replace the swagger code in Program.cs with below code

builder.Services.AddSwaggerGen(c =>

{

    c.ResolveConflictingActions(apiDescriptions => apiDescriptions.First());

});

6. Lets test the API

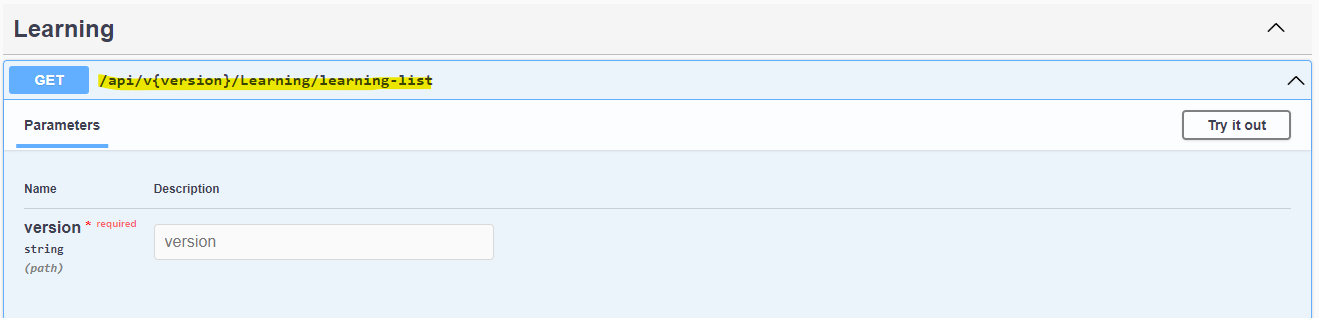

Go to swagger

Now learning-list work for two versions i.e. v1 and v2

Hers is the result

https://localhost:7289/api/v1/Learning/learning-list

Next Specify version 2, then below is the output

https://localhost:7289/api/v2/Learning/learning-list

You can notice that complete URL is same for both, version number changes.

Version 1: https://localhost:7289/api/v1/Learning/learning-list

Version 2: https://localhost:7289/api/v2/Learning/learning-list

Deprecating Older Versions API:

Sometime we need to deprecate the older versions of the API, but we do not wish to completely remove that because it could give a bad taste to clients.

In such case we can set the deprecated flag to true for those API need to be deprecated, so client will get this information from the header of api-deprecated-versions from response.

    [ApiController]
    [Route("api/v{version:apiVersion}/Learning")]
    [ApiVersion("1.0", Deprecated = true)]
    [ApiVersion("2.0")]
    [EnableCors("SampleCORS")]
    public class LearningController : ControllerBase
    {

It will not remove the specified versions of the API, but it will return the list of deprecated versions in the header.

Done with coding, you can Download complete source code here Download Source Code

That's it for this article. We have learned API versioning, types of versioning and other stuff's. In case any concerns please reach out to through comment section.

See you in next article.
